Original 3.2*1.5mm 3215 SMD 32.768KHz Crystal Oscillator

FOB Reference Price:Get Latest Price
US $0.095-0.159 / Piece | 10 Piece/Pieces 10 Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Week 32.768KHz Crystal
Port:
ShenZhen/HK or depends on your request
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WTL
Model Number:
WTL2.04073ZX
Package Type:
Surface Mount
Nominal Frequency:
32.768KHz
Frequency Tolerance:
20ppm
Load Capacitance:
12.5pF
Operating Temperature:
40+85'C
Supply Voltage:
Passive
Dimensions:
3.2*1.5mm
Warranty:
Global 180 Days Return
About Us:
17 Years Experience
Factory:
Yes
OEM:
Welcome
Samples:
Accept
Package:
Tape and Reel
Certificate:
ISO9001, ISO14001, SGS, RoHS
Service:
Door to Door
Payment:
T/T, Western Union, PayPal,Credit Card
Shipment:
DHL, UPS, TNT, Fedex, EMS,China Post
Packaging & Delivery
Packaging Details
tape & reel,3000pcs/Reel(Original 3.2*1.5mm 3215 SMD 32.768KHz Crystal Oscillator)
Delivery Time
Shipped in 14 days after payment
Video Description

Original 3.2*1.5mm 3215 SMD 32.768KHz Crystal Oscillator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Small size

2. Tape & Reel

3. Reflow available

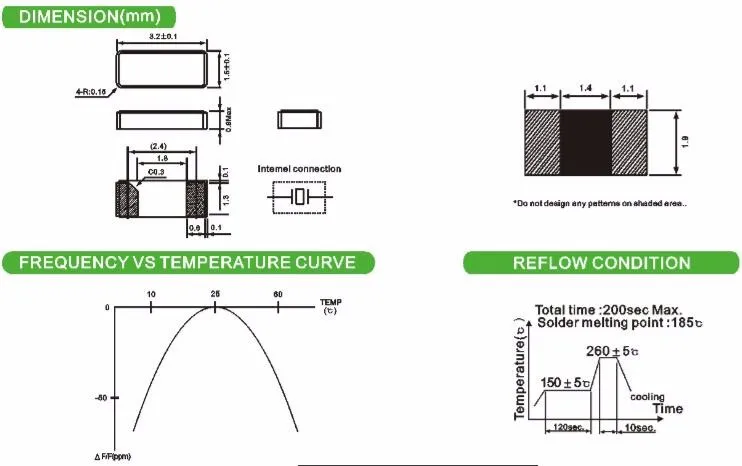

ELECTRICAL SPECIFICATIONS

Quartz Crystal (3.2X1.5mm SMD Package)

Item

Specifications

P/N

WTL2.04073ZX

Frequency

32.768KHz

Load Capacitance(CL)

12.5pF

Frequency Tolerance (at 25°C)

±20ppm

Operating Temperature Range

-40 °C to + 85°C

Storage Temperature Range

-55 °C to + 125 °C

Shunt Capacitance (C0)

1.3pF Typ

Dynamic Capacitance(C1)

2.4fF Typ

Driver Level(Typical)

1µW Max

Aging @25°C 1st year (Max)

± 3ppm/year



Original 3.2*1.5mm 3215 SMD 32.768KHz Crystal Oscillator

Packaging & Shipping



Our Services



1.17 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 17 years and it is located on West wing, Cui Hu 3rd road, Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



WTL Factory Video:https://www.youtube.com/watch?v=-orK7PXNjU8

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
