F11 R433 4 Pin 433.92mhz Crystal Saw Resonator

FOB Reference Price:Get Latest Price
US $0.072-0.099 / Pieces | 10 Piece/Pieces 10 Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WTL
Model Number:
WTL2.01153ZX
Package:
F11
Frequency:
433.92MHz
Insertion Loss:
1.5dB
Bandwidth:
+/-75KHz
Warranty:
Global 180 Days Return
About Us:
18 Years Experience
OEM/ODM:
Welcome
Shipment:
DHL, UPS, Fedex, EMS,China Post
Payment:
T/T, Western Union, PayPal,Credit Card
Sample:
Free Samples
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month 433.92mhz Saw Resonator
Packaging & Delivery
Packaging Details
Tape&reel/Bag(F11 R433 4 Pin 433.92mhz Crystal Saw Resonator)
Port
SHENZHEN
Lead Time :
2-3 weeks
Video Description

F11 R433 4 Pin 433.92mhz Crystal Saw Resonator

433.92mhz Saw Resonator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



1. ELECTRICAL SPECIFICATION

DC Voltage VDC

10V

AC Voltage Vpp

10V50Hz/60Hz

Operation temperature

-40℃ to +85℃

Storage temperature

-45℃ to +85℃

RF Power Dissipation

0dBm



2.ELECTRONICS CHARACTERISTICS

Item

Unites

Minimum

Typical

Maximum

Center Frequency

MHz

433.845

433.920

433.995

Insertion Loss

dB



1.5

2.5

Quality Factor Unload Q



8000

12800



50Ω Loaded Q



1000

2000



Temperature

Stability

Turnover Temperature

10

25

40

Freq.temp.Coefficient

ppm/℃2



0.032



Frequency Aging

ppm/yr



<±10



DC. Insulation Resistance

1.0





RF Equivalent RLC Model

Motional Resistance R1

Ω



18

26

Motional Inductance L1

μH



74.627



Motional Capacitance C1

fF



1.8024



Transducer Static Capacitance

pF



2.3

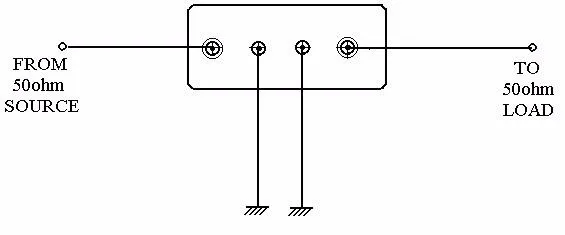

3. TEST CIRCUIT



433.92mhz Saw Resonator



4. DIMENSION

   433.92mhz Saw Resonator

F11 R433 4 Pin 433.92mhz Crystal Saw Resonator



Packaging & Shipping



433.92mhz Saw Resonator

Our Services



433.92mhz Saw Resonator433.92mhz Saw Resonator

1.18 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line
