Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: WTL
  • Model Number: WTL2.01238ZX
  • Item: 433.42MHz Saw Resonator
  • Center Frequency: 433.42MHZ
  • Package: T0-39
  • Insertion Loss: 1.5dB
  • Operating Temperature Range: -40+85'C
  • Bandwidth: ±75KHz
  • Warranty: Global 180 Days Return
  • Certificate: ISO9001, ISO14001, SGS, RoHS
  • About Us: 17 Years Experience
  • Shipment: DHL, UPS, Fedex, EMS,China Post

Packaging & Delivery

Packaging Details Opp Bag + Carton(TO39 433.42MHz One Port Saw Resonator)
Delivery Time 2-3 weeks

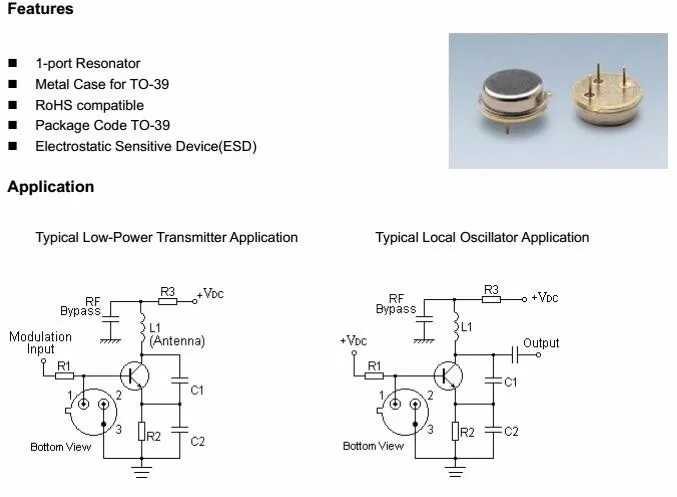

TO39 433.42MHz One Port Saw Resonator



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



TO39 433.42MHz One Port Saw Resonator

1. ELECTRICAL SPECIFICATION

DC Voltage VDC

10V

AC Voltage Vpp

10V50Hz/60Hz

Operation temperature

-40℃ to +85℃

Storage temperature

-45℃ to +85℃

RF Power Dissipation

0dBm



Item

Unites

Minimum

Typical

Maximum

Center Frequency

MHz

423.345

433.420

423.495

Insertion Loss

dB



1.5

2.5

Quality Factor Unload Q



 5000

12,800



50Ω Loaded Q



 1000

2,000



Temperature Stability

Turnover Temperature

10

25

40

Turnover Frequency

KHz



fo±1.3



Freq.temp.Coefficient

ppm/℃2



0.032



Frequency Aging

ppm/yr



<±10



DC. Insulation Resistance

1.0

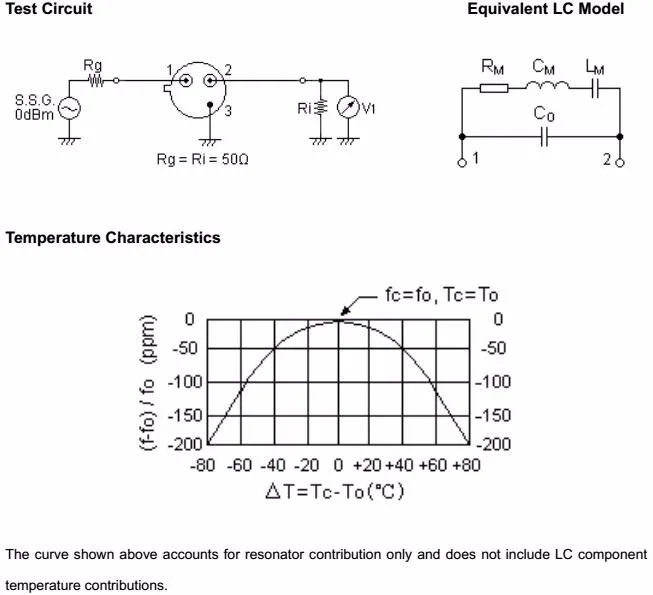

RF Equivalent RLC Model

Motional Resistance RM

Ω



19

26

Motional Inductance LM

μH



74.835



Motional Capacitance CM

pF



1.8917



Transducer Static Capacitance Cp

pF



2.0





Packaging & Shipping



Our Services



1.17 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 54 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 17 years and it is located on West wing, Cui Hu 3rd road, Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



WTL Factory Video:https://www.youtube.com/watch?v=-orK7PXNjU8

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
