49S/H:4.0 315MHz Saw Resonator Replacement TO39

FOB Reference Price:Get Latest Price
US $0.059-0.079 / Pieces | 10 Piece/Pieces 10 Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WTL
Model Number:
WTL2.03955ZX
Package:
HC-49S
Frequency:
315MHz
Insertion Loss:
1.8dB
Frequency Tolerance:
±75KHz
Operating Temperature Range:
-40+85'C
Warranty:
Global 180 Days Return
Sample:
Accept
About Us:
17 Years Experience
Cetificate:
ISO9001, ISO14001, SGS, RoHS
Shipment:
DHL, UPS, TNT, Fedex, EMS,China Post
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month 315MHz Saw Resonator
Packaging & Delivery
Packaging Details
tape and reel package,1000pcs/reel(49S/H:4.0 315MHz Saw Resonator Replacement TO39)
Port
Shenzhen or hongkong
Lead Time :
20days after payment
Video Description

49S/H:4.0 315MHz Saw Resonator Replacement TO39

315MHz Saw Resonator



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

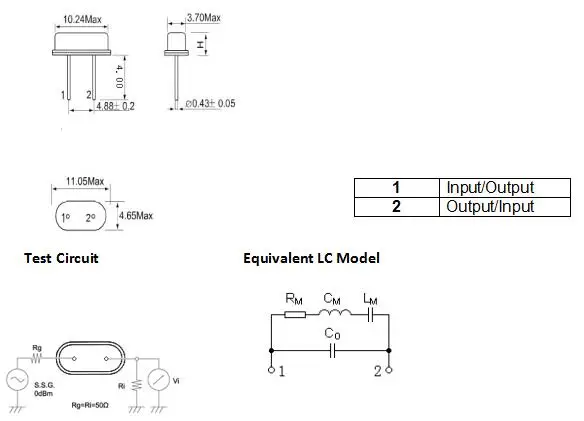

FEATURE

1. 1-port resonator

2. Metal case for HC-49S

3. RoHS Compliant

4. Package size 10.24*3.70*11.05mm

5. Electrostatic Sensitive Device(ESD)



ELECTRICAL SPECIFICATIONS

315MHz Saw Resonator

49S/H:4.0 315MHz Saw Resonator Replacement TO39

315MHz Saw Resonator

Packaging & Shipping



315MHz Saw Resonator

Our Services



315MHz Saw Resonator315MHz Saw Resonator

1.17 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 17 years and it is located on West wing, Cui Hu 3rd road, Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



WTL Factory Video:https://www.youtube.com/watch?v=-orK7PXNjU8

315MHz Saw Resonator

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
