Stock Clearance Sale KDS 3x8mm Tuning Fork Crystal 32.7680KHz 12.5pF T/H

FOB Reference Price:Get Latest Price
US $0.02-0.025 / Pieces | 10 Piece/Pieces 10 Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WTL
Model Number:
WX2
Package Type:
Throught Hole
Nominal Frequency:
32.768KHz
Frequency Tolerance:
±50ppm
Load Capacitance:
12.5pF
Operating Temperature:
-20+70C'
Supply Voltage:
Passive
Dimensions:
3x8mm
Packaging:
Opp Bag+Carton
Warranty:
Global 180 Days Return
OEM/ODM:
Welcome
Sample:
Accept
About Us:
17 Years Experience
Certificate:
ISO9001, ISO14001, SGS, RoHS
Payment:
T/T, Western Union, PayPal,Credit Card
Shipment:
DHL, TNT, UPS, Fedex, EMS,China Post
Factory Manufacturer:
Yes
Item:
Crystal 32.7680KHz 12.5pF T/H
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month Crystal 32.7680KHz 12.5pF T/H
Packaging & Delivery
Packaging Details
1K/bag 10K/box(Stock Clearance Sale KDS 3x8mm Tuning Fork Crystal 32.7680KHz 12.5pF T/H)
Port
Shenzhen
Lead Time :
1-5 Days
Video Description

Stock Clearance Sale KDS 3x8mm Tuning Fork Crystal 32.7680KHz 12.5pF T/H

Crystal 32.7680KHz 12.5pF T/H

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Wide frequency range

2. High shock tolerance

3. Small size

4. Reliable frequency stability

5. Applications:microprocessor systems,consumer electronics,instrumentation,automotive electronics



ELECTRICAL SPECIFICATIONS

Tuning Fork Crystal (3X8mm Cylinder Crystal)

Item

Specifications

Frequency Range

32.768KHz

Load Capacitance(CL)

12.5pF

Frequency Tolerance (at 25°C)

± 50ppm

Operating Temperature Range

-20°C+70°C

Storage Temperature Range

-55 °C to + 125 °C

Shunt Capacitance (C0)

1.5pF Typ

Driver Level(Typical)

1µW Max

Aging @25°C 1st year (Max)

± 3ppm,± 5ppm/year

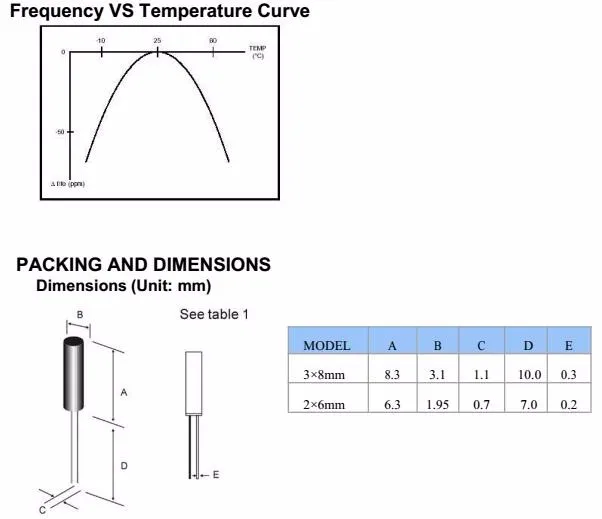

Stock Clearance Sale KDS 3x8mm Tuning Fork Crystal 32.7680KHz 12.5pF T/H

Crystal 32.7680KHz 12.5pF T/H

Packaging & Shipping



Crystal 32.7680KHz 12.5pF T/H

Our Services



Crystal 32.7680KHz 12.5pF T/HCrystal 32.7680KHz 12.5pF T/H

1.17 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 54 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 17 years and it is located on West wing, Cui Hu 3rd road, Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



WTL Factory Video:https://www.youtube.com/watch?v=-orK7PXNjU8

Crystal 32.7680KHz 12.5pF T/H

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
