WTL 5.0x5.0mm SMD-8 Saw Resonator 868.30MHz

FOB Reference Price:Get Latest Price
US $0.199-0.289 / Pieces | 10 Piece/Pieces 10 Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WTL
Model Number:
WTL2.02414ZX
Size:
5.0*5.0mm
Center Frequency:
868.30MHZ
Insertion Loss:
1.3dB
Operation Temperature Range:
-40℃ to +85℃
Certificate:
ISO9001/ISO14000/SGS/RoHS
OEM/ODM:
Welcome
Warranty:
Global 180 Days Return
About Us:
17 Years Experience
Payment:
T/T, Western Union, PayPal,Credit Card
Shipment:
DHL, UPS, TNT, Fedex, EMS,China Post
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Month Saw Resonator 868.30MHz
Packaging & Delivery
Packaging Details
tape & reel,1K/reel or 3K/reel(WTL 5.0x5.0mm SMD-8 Saw Resonator 868.30MHz)
Port
Shenzhen
Lead Time :
Shipped in 14 days after payment

WTL 5.0x5.0mm SMD-8 Saw Resonator 868.30MHz

Saw Resonator 868.30MHz



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



WTL 5.0x5.0mm SMD-8 Saw Resonator 868.30MHz

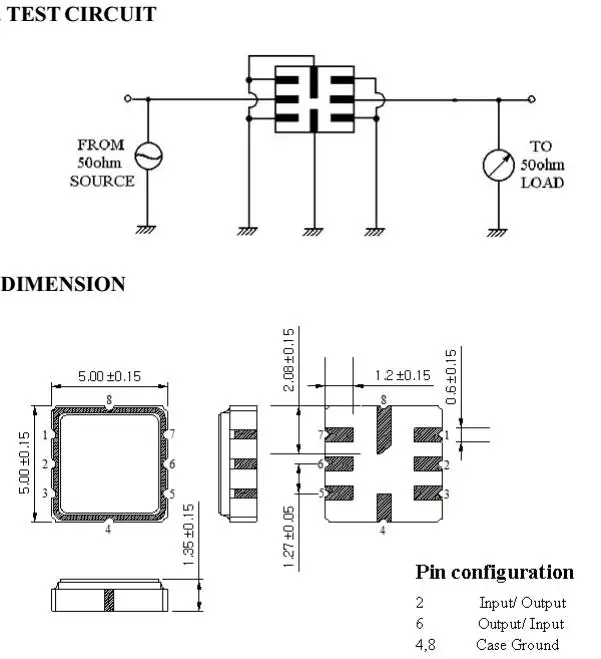

Electrical Specification

DC Voltage VDC

10V

AC Voltage Vpp

10V 50Hz/60Hz

Operation temperature

-40℃ to +85℃

Storage temperature

-45℃ to +85℃

Source Power

0dBm



Item

Unites

Minimum

Typical

Maximum

Center Frequency

MHz

868.050

868.300

868.550

Insertion Loss

dB



1.3

3.5

Quality Factor

Unload Q



10000

13000



50Ω Loaded Q



1000

2000



Temperature

Stability

Turnover Temperature

10

25

40

Freq.temp.Coefficient

ppm/℃



0.037



Frequency Aging

ppm/yr



<±10



DC. Insulation Resistance

1.0





RF Equivalent RLC Model

Motional Resistance R1

Ω



23

30

Motional Inductance L1

μH



22.980



Motional Capacitance C1

fF



1.462



Transducer Static Capacitance C0

pF



1.67





Saw Resonator 868.30MHz

Packaging & Shipping



Saw Resonator 868.30MHz

Our Services



Saw Resonator 868.30MHz

1.17 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 17 years and it is located on West wing, Cui Hu 3rd road, Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



WTL Factory Video:https://www.youtube.com/watch?v=-orK7PXNjU8

Saw Resonator 868.30MHz

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)



How to Contact Us?

Click Here To Get Datasheet and More Discounts!

Saw Resonator 868.30MHz

WTL 5.0x5.0mm SMD-8 Saw Resonator 868.30MHz
